The lecture room set 2.0 aka. "Case 2.0" consists of two 120x60 cm TRANSFlex road cases on a standard EUR-pallet.

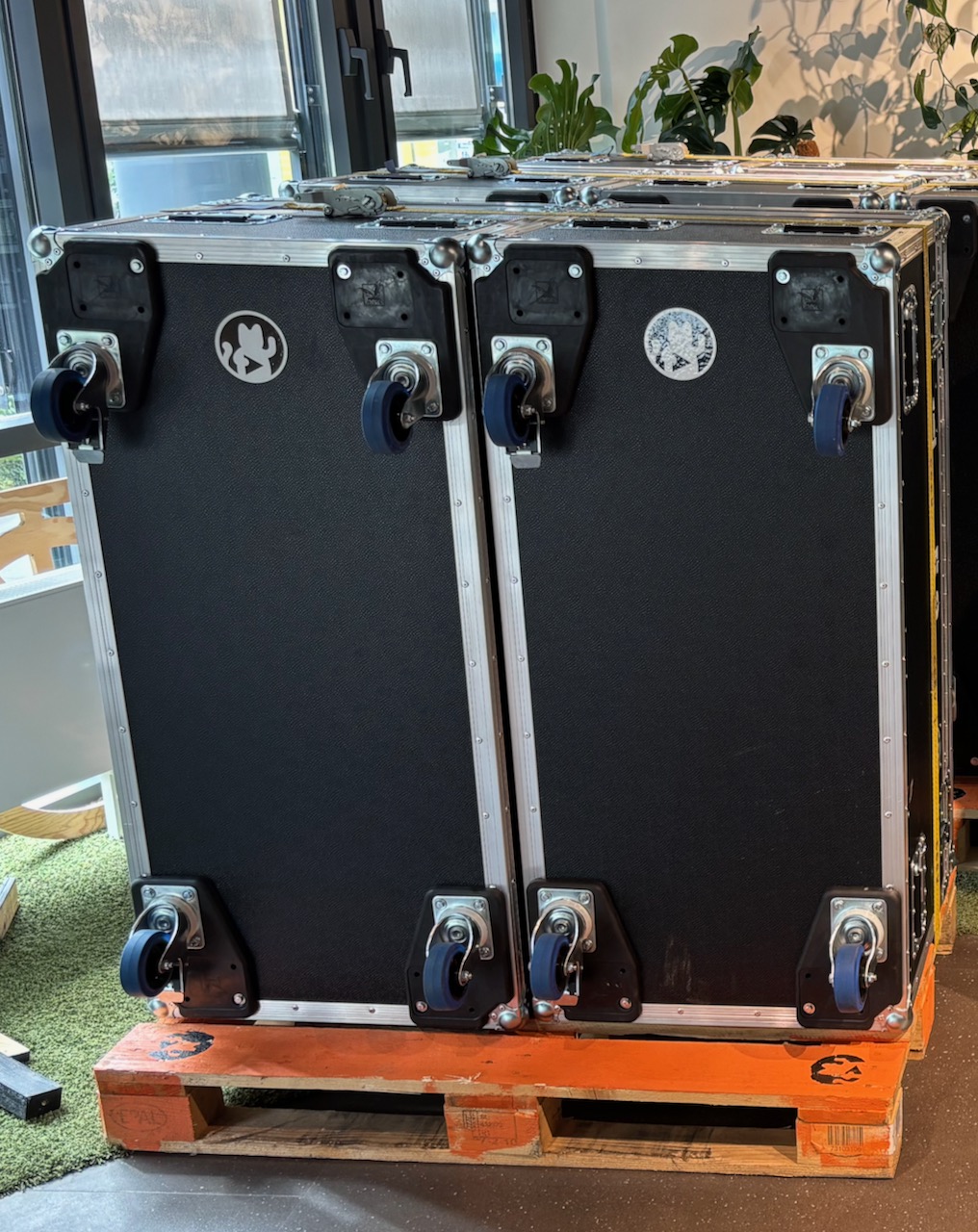

As the picture shows: When both cases are topped on their short side, they fit perfectly inside the 120x80 cm outline of the pallet. The height is approx. 140 cm.
During operation, an area of 2x 120x60cm with a height of approx. 80 cm is needed plus some space to store the pallet somewhere.
The c3voc owns a total of 6 room setups called "Saal 1" to "Saal 6".
Each case is marked with a unique identifier in the form of $room.$case, so e.g. 4.1 and 4.2 make the set for room/ hall 4.
Content
The concept of the setup is to use pre-assembled module for things which are usually used together. These include the so called Lectern, FOH and Encoder modules and a euro crate containing everything that's associated to the camera position.
Case x.1
The .1 case contains accessories including:
- tripod and camera crate (including preview monitor, power supply, etc.)
- cable bridges and cable mats
- power, XLR, SDI and HDMI cables
- several accessory boxey
Case x.2
The .2 case contains the modules and other equipment:
- lectern, FOH and encoder module
- office crate
- minion crate
- microphones
- ethernet cables
